User Interface: Group Mapping Table
The Spectrum Group to LDAP Group or Azure Group mapping tables allow you to specify how LDAP/Azure groups relate to Spectrum groups. When an LDAP/Azure user signs in to Spectrum, these mappings are used to support auto-provisioning of Spectrum group memberships for the user.
For more information on LDAP or Azure authentication, see Configure LDAP Authentication or Configure Azure Authentication.

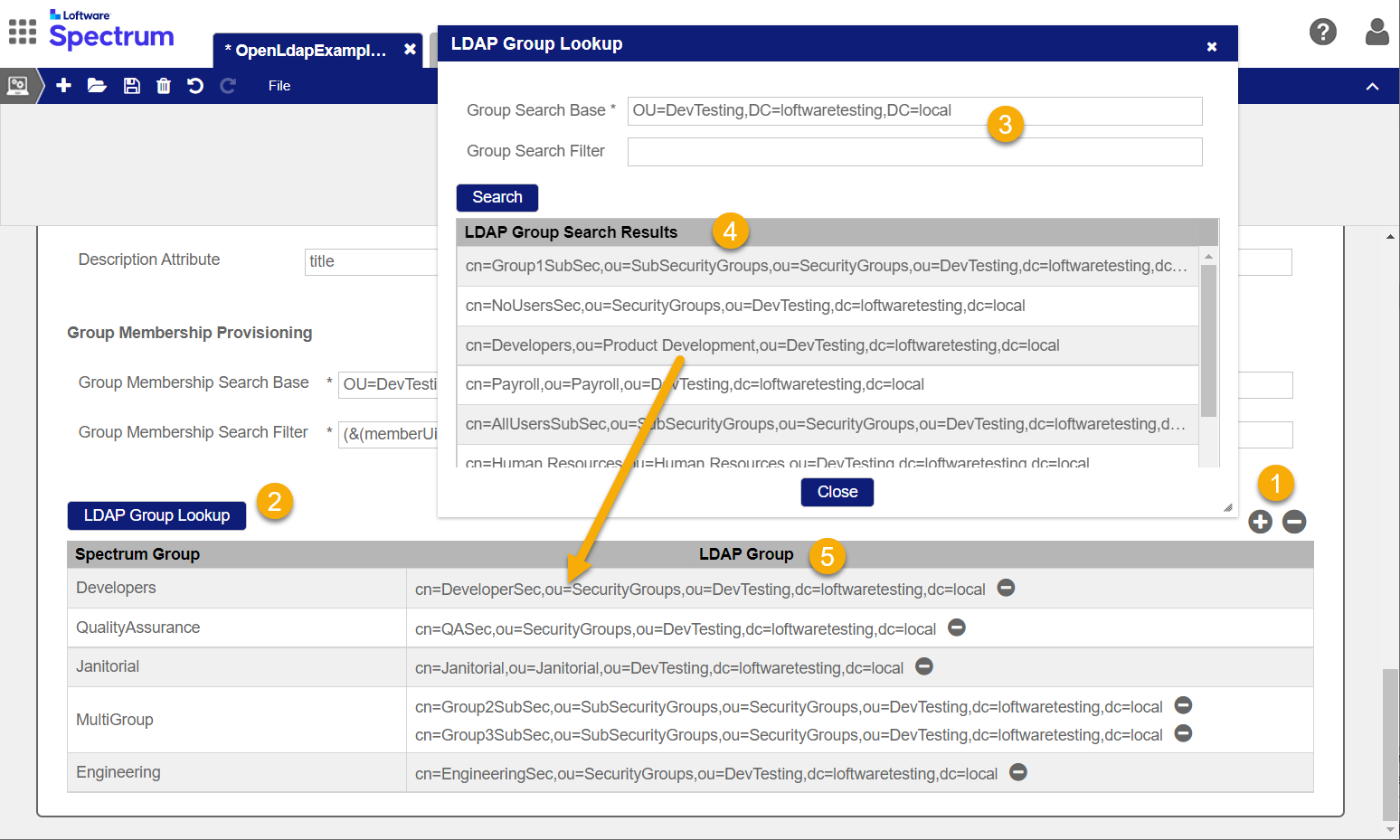

| Number | Description |
|---|---|
|
1 |
Click the To remove a Spectrum group from the table, select the row to remove and then click the |
|
2 |
Click the LDAP Group Lookup or Azure Group Lookup button to search for LDAP/Azure groups on your LDAP/Azure server. |
|
3 |
Enter the group search base and/or search filter, and then click Search. |
|
4, 5 |
Click and drag a group from the LDAP Group Search Results or Azure Group Search Results dialog box to the LDAP Group or Azure Group column of the mapping table for the corresponding Spectrum Group. |
Add button to add a Spectrum group or groups to the mapping table.
Delete button.
